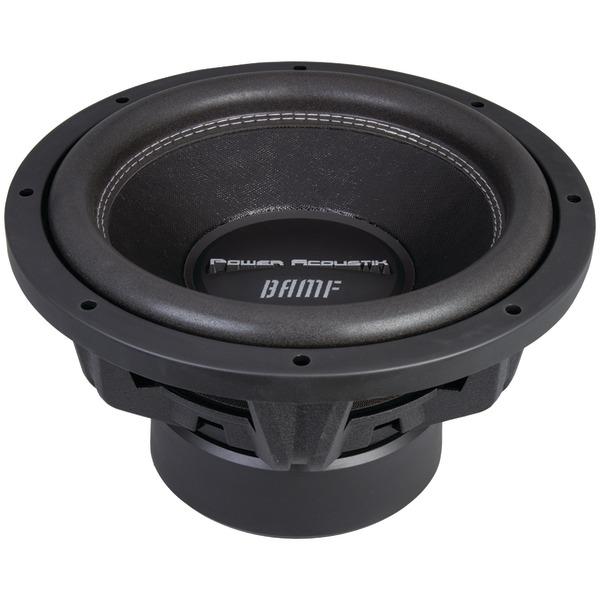

Power Acoustik BAMF-104 BAMF Series Subwoofer (10 3200 Watts max Dual 4ohm ) 10
1600W RMS
Dual 4ohm
Overcompensating motor structure for increased magnetic strength
12mm T-yoke & top plate improve low frequency dynamics
Vented T-yoke & frame reduces voice coil heat buildup
Nonmagnetic nonresonate die-cast aluminum frame
3 4-layer voice coils with direct connect wire increases power handling
High-temperature-tolerance adhesives resist thermal failure
Nontransfer spruce pulp cone with UV & chemical protection
Stitched & glued surroundcone joints for strongest bonding
Extended excursion polyether foam surround with UV protection
Dual-polycotton suspension dampens violent accelerations
Stitched voice coil leads prevent potential damage
Efficiency: 83.8dB @ 1W1m
Motor volume: 272oz
Mounting depth: 6
Optimum sealed enclosure: .75 cu ft
Optimum ported enclosure: 1.25 cu ft
Includes 1-piece gaskettrim ring with concealed mounting holes
POWER ACOUSTIK(R)PRODUCT WARRANTY : ONE YEAR
