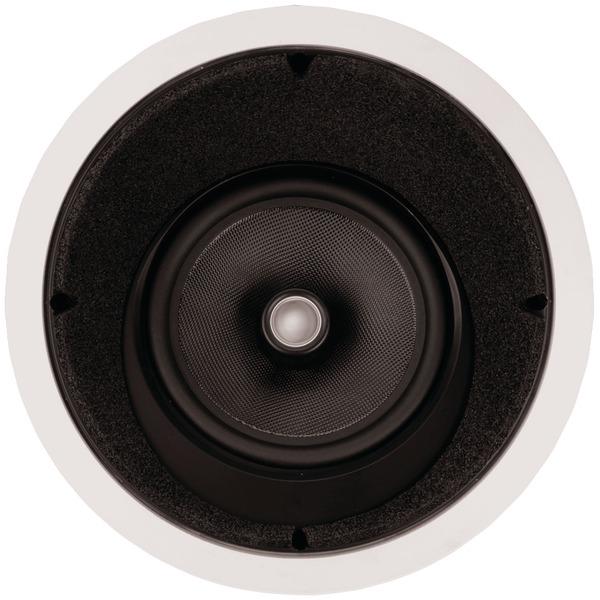

ArchiTech PS-815 LCRS 8 15deg -Angled Ceiling LCR Speaker 160W max
8 woven woofer is made with DuPont(TM) Kevlar(R) fiber
Butyl rubber surround
1 lens-free aluminized ferrofluid pivoting dome tweeter
Imp: 8ohm
Sensitivity: 91dB @ 1W1m
Freq resp: 35Hz-22kHz
High-temperature polyimide voice coils
3rd-order electro-acoustic crossover glass epoxy PC board low DCR inductors tight-tolerance metalized polypropylene capacitors & gold-plated terminals
Woofer mounted in wide-mouth foam-lined baffle with pole-mounted tweeter minimizes diffraction while widening dispersion sound field
15deg angle
Dog-leg type mounting system
Acoustically transparent scrim cloth grille
Cutout dim: 11.5 dia x 5.75D
Overall dia: 12.88
Each
DuPont(TM) & Kevlar(R) are trademarks or registered trademarks of E.I. du Pont de Nemours & Company
ARCHITECH(R)PRODUCT WARRANTY : LIMITED LIFETIME
